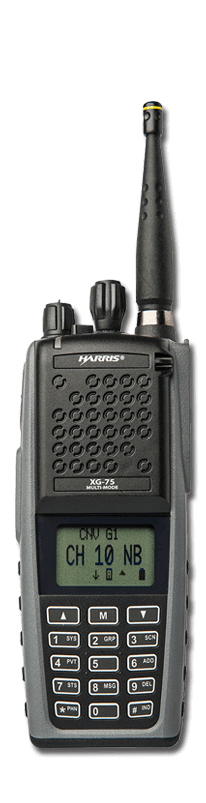

The XG-75Pe is a single-band radio operating in the UHF-H, and 700/800 MHz frequency bands. Delivering multiple features and options, this portable is easily customized to meet users' needs. Rugged, immersible (option), and UL certified for C1D1 HAZLOC use (option), the XG-75Pe is the ideal solution for customers who operate their radios in the toughest conditions.
Frequency Band:
UHF, 700/800 MHz
Frequency Range:
UHF: 450-522 MHz>
700/800: 769-775, 799-805, 806-816, 851-861 MHz
Power Output:
UHF: 5W
700/800: 3 W
Standard battery chemistry type:
Li-Ion
Battery life (based on a 5-5-90 duty cycle):
10 hours
Number of Channels/Groups/Zones:
Channel spacing:
Dimensions H x W x D (without standard battery)
5.89 H x 2.44 W x 1.86 D in (149.6 H x 62.0 W x 47.2 D mm)
Weight (without standard battery)
10.4 oz (294.5 g)
Keypad / Keys
DTMF keypad or limited keypad
Display
Dot matrix LCD
Operating temperature
-22° F to +140° F (-30° C to +60° C)
Mil spec
810D, E, F, 810G
IP Standards
IP68
Equipped with an enlarged speaker, dual microphone, AMBE+2™ and active noise cancellation, the XG-75Pe delivers clear audio despite noisy, congested environments.
The portable is also future-ready with wideband and narrowband channels and a software-defined architecture allowing field upgrades to new operating modes, including P25 Phase 2 trunking.
Designed for ease of use, the XG-75Pe features a three-position A-B-C switch on the top of the radio for direct access to 48 talkgroups and channels.
Knobs and buttons are ruggedized to protect from impact and are shaped for error-free, gloved-hand operation. Instant recall feature replays last transmissions received, preventing missed communications.
