Motorola Solutions

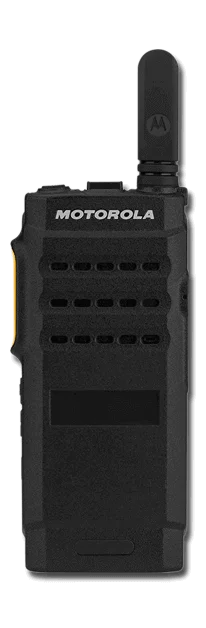

SL300

MOTOTRBO™ SL300 portable radio provides reliable push-to-talk communication for the mobile, everyday user in an ultra-slim and rugged profile.

Whether you're working in the field or at a black-tie event, the SL300 is boldly designed to keep you efficiently connected. Measuring under an inch thick, the SL300 is ultra-portable with a stubby antenna, curved edges, and a rugged frame. It features an Active View display with a matrix of LED lights behind the radio housing and “Range Max” technology, an advanced radio design, and a patented antenna for enhanced range. Designed for easy and intuitive use and outfitted with the latest technology, the SL300 is the perfect work partner.

Radios include:
SL300 Active View Display
SL300 Non-Display

Frequency Band:
VHF, UHF

Frequency Range:
VHF - 136 - 174 MHz;
UHF - 403 - 470 MHz

Power Output:
1, 2, 3, Watt

Number of Channels/Groups/Zones:
99 Channels

Standard battery chemistry type:
Lithium Ion

Battery life (based on a 5-5-90 duty cycle):
Analog (hours) - 12.5 (VHF Non-Display), 11.8 (VHF Display); 12.5 (UHF Non-Display), 11.8 (UHF Display)
Digital - 15 (VHF Non-Display), 14 (VHF Digital); 15 (UHF Non-Display), 14 (UHF Display)

Dimensions H x W x D (with standard battery)
4.95 X 2.17 x 0.87 in (125.7 X 55.0 X 22.0 mm)

Weight (with standard battery)
VHF: 5.96 oz (168.9 g), UHF: 5.84 oz (165.6 g)

Display
No Display, Active View

Operating temperature
-22 F to 140 F (-30 C to +60 C)

Mil spec
810 D 810 E

IP Standards
IP54

Motorola Solutions SL300

Key features

  • Supports digital and analog communications
  • UHF, VHF
  • 2 channels (non-display) / 99 channels (display)
  • 1.0 – 3.0 Watts Output Power
  • Built to last: MIL-STD 810 & IP54-Rated Durability
  • Analog/Digital Operation
  • Designed for easy, intuitive use

Slim and stylish, for the customer service user who needs intuitive technology
Measuring under an inch thick, the SL300 is ultra-portable. A stubby antenna, curved edges and rugged frame make the SL300 the perfect work partner. It can be easily carried in pockets and purses without snagging or bulging.

Active View Display – optional (SL300 display model)
Shatterproof Active View display uses hidden LED lighting to communicate channel, radio, and volume information crisply in both daytime and nighttime situations.

Connect to intuitive technology with this slim, lightweight radio. An eye-catching Active View display combines ruggedness with simplicity, and patented Range Max technology delivers great coverage with long battery life in a small, convenient outline. The radio supports analog and digital modes and is complemented by a range of innovative accessories.

Popular with these industries:

  • Education
  • Hospitality
  • Property Management
  • Retail
  • Security

Spec Sheets

Communications are Evolving: Next-Generation MOTOTRBO Two-way Radios

From the production line to the power line, MOTOTRBO radios are helping people work more efficiently, productively and safely. MOTOTRBO delivers game-changing advantages along with business-essential systems, applications and accessories.

UHF Antennas

Motorola PMAE4093

PMAE4093

UHF Stubby Antenna (403-425 MHz), 4.5 cm

Motorola PMAE4094

PMAE4094

UHF Stubby Antenna (420-445 MHz), 4.5 cm

Motorola PMAE4095

PMAE4095

UHF Stubby Antenna (435-470 MHz), 4.5 cm

VHF Antennas

Motorola PMAD4144

PMAD4144

VHF Stubby Antenna (136-144 MHz), 5 cm

Motorola PMAD4145

PMAD4145

VHF Stubby Antenna (144-156 MHz), 5 cm

Motorola PMAD4146

PMAD4146

VHF Stubby Antenna (156-174 MHz), 5 cm

Motorola Original® Two-Way Radio Batteries

Motorola PMNN4468

PMNN4468

BT100x Li-Ion 2200 mAh battery

Motorola PMLN7074

PMLN7074

Replacement Battery Cover

Motorola PMLN7190

PMLN7190

Carry Holster with Swivel Belt Clip

Motorola PMLN7128

PMLN7128

Heavy-Duty Swivel Belt Clip

Motorola PMLN6074

PMLN6074

Nylon Wrist Strap

Motorola PMLN7076

PMLN7076

Flexible Quick Release Hand Strap

Motorola HLN9985

HLN9985

Waterproof Bag with large strap for securely carrying Motorola two-way radios

Image Not Available

25009298001

Micro-USB Single-Unit Rapid Rate 5V/1A, Plug-In Power Supply, 5W, 100V-240V (US plug)

Motorola PMLN7101

PMLN7101

Six-Pocket Multi-Unit Rapid Rate Charger, 90V-264V (US plug)

Motorola PMLN7109

PMLN7109

Single-Unit Rapid Rate Charger 5V/1A, 5W, 100V-240V (US Plug)

Image Not Available

CB000262A01

Micro USB Programming Cable

Motorola PMLN7157

PMLN7157

2-Wire Surveillance Kit with translucent tube, black

Motorola PMLN7158

PMLN7158

1-Wire Surveillance Kit with in-line microphone and push-to-talk, black

Motorola PMLN7189

PMLN7189

Swivel Earpiece with in-line microphone and push-to-talk

Motorola PMLN7156

PMLN7156

Mag One Earbud with in-line microphone and push-to-talk

Motorola PMLN7159

PMLN7159

Adjustable D-style earpiece with in-line microphone and push-to-talk, black

The Motorola SL300 Series is available in the following models.

SL300 Active View Display

  • AAH88JCP9JA2AN 136 - 174 MHz VHF, 1-3 Watts with Range Max Technology, 99 Channels
  • AAH88QCP9JA2AN 403 - 470 MHz UHF, 1-3 Watts with Range Max Technology, 99 Channels

SL300 Non-Display

  • AAH88JCC9JA2AN 136 - 174 MHz VHF, 1-3 Watts with Range Max Technology, 2 Channels
  • AAH88QCC9JA2AN 403 - 470 MHz UHF, 1-3 Watts with Range Max Technology, 2 Channels
